KIDS UNIT ZA-208Q6

Contact Us
Quick Inquiry

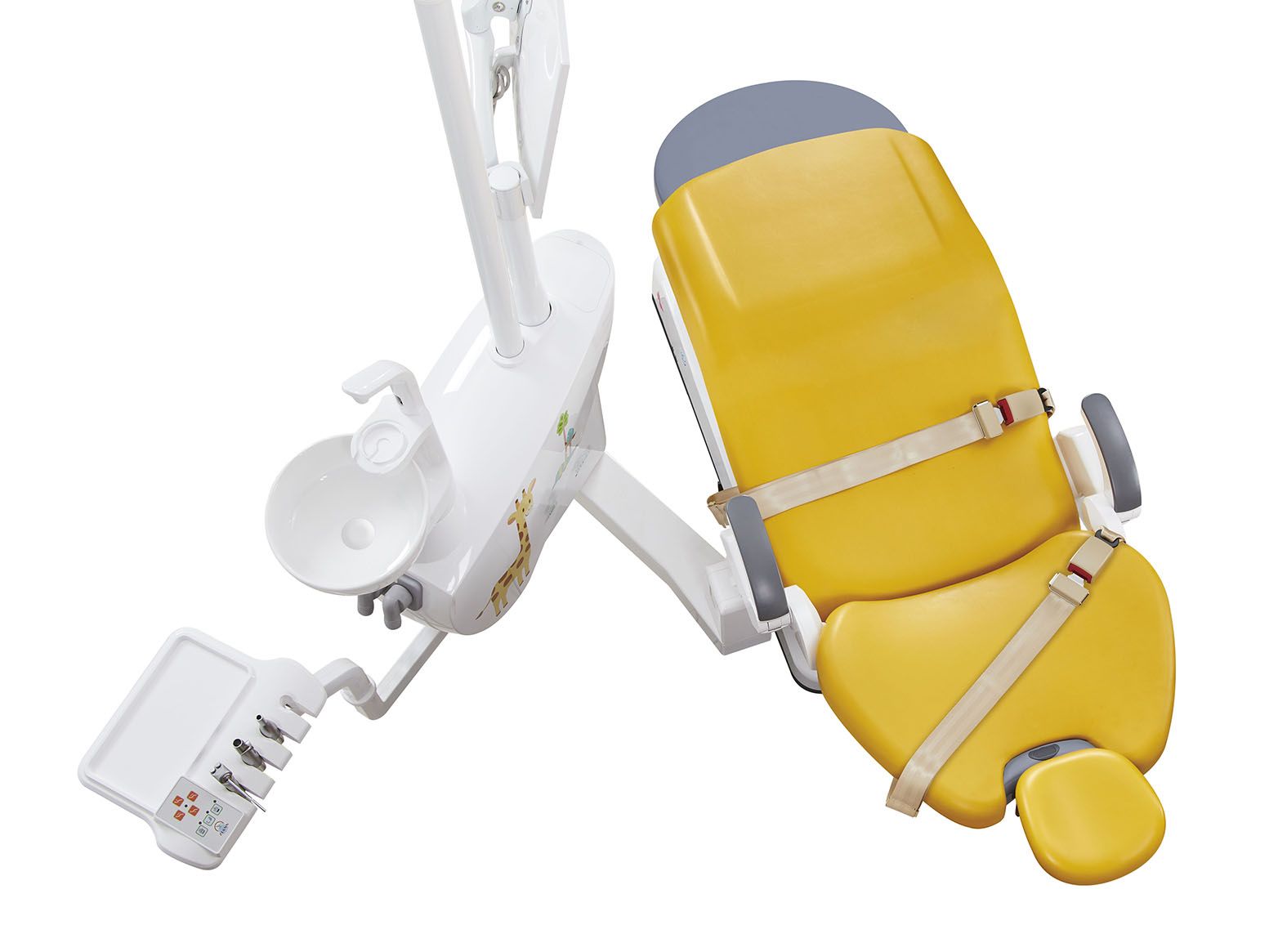

-Latest design for Kids unit .

-Specialized designed  for  kids , ziann dental chari  is equipped with comfortable neck and waist pillow, which is combined with strong support for the patient's curve position, so that the spine is more comfortable.

The design of the compensation chair makes the patient's whole body blood circulation flow more smoothly, lying down for a long time is not tired, relaxed and comfortable.

Share:

Kids Unit

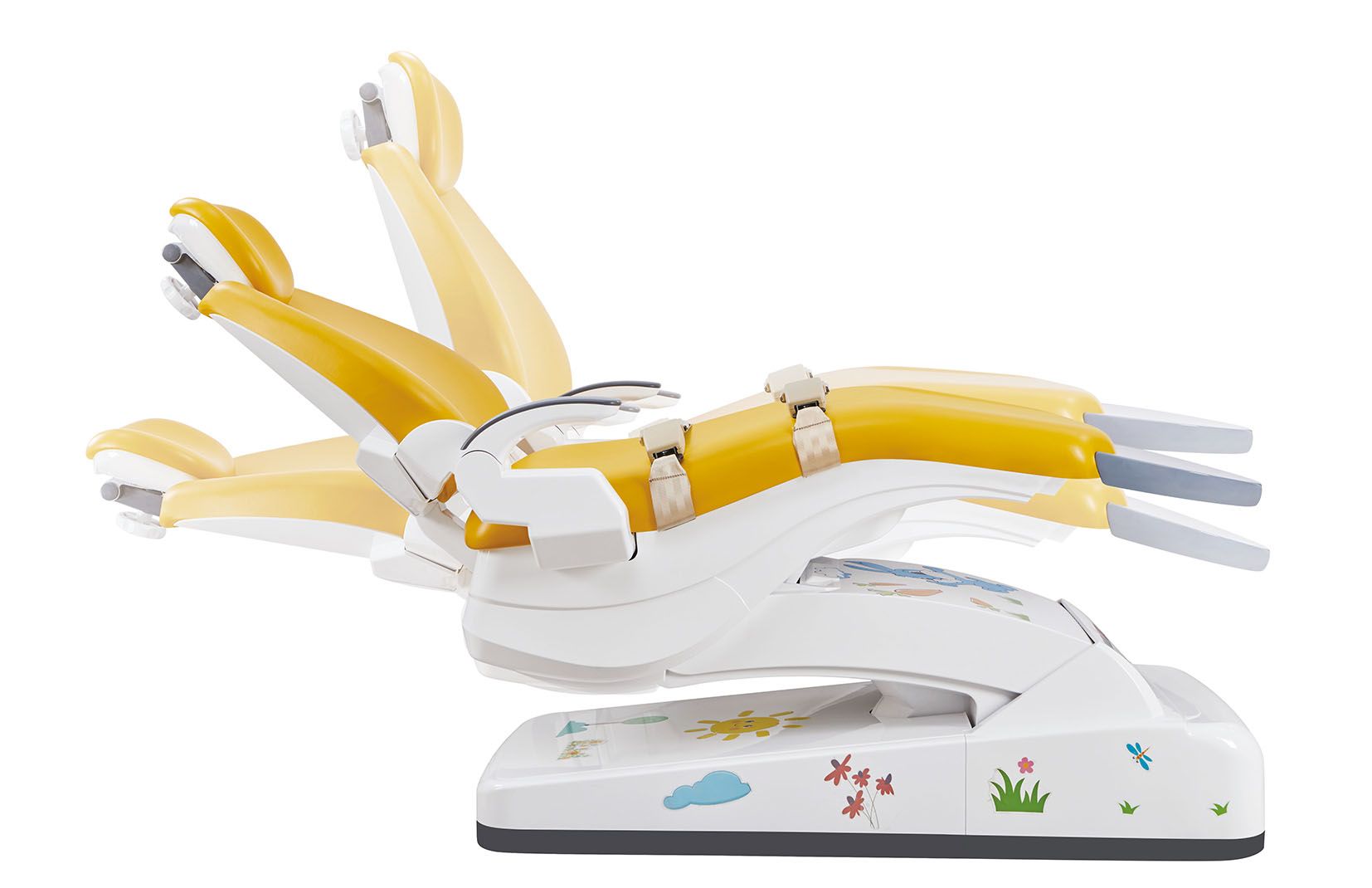

Fourth generation compensation chair design



-German KUKA machine manual automatic assembly (accuracy up to +0.08mm)

-The highest > 720mm, and the <450mm.

-It only takes 9 seconds for the backrest to reach the working position



Seamless Poly Urethane



Kids UnitKids Unit



-Seamless pu , easy for clean and disinfection , water proof and durable

-The cushion is soft and comfortable with good resilience





Kids Unit

Movable side box :



     -degreee movable side box , Adopt injection molding process,The opposite door is designed for easy maintenance

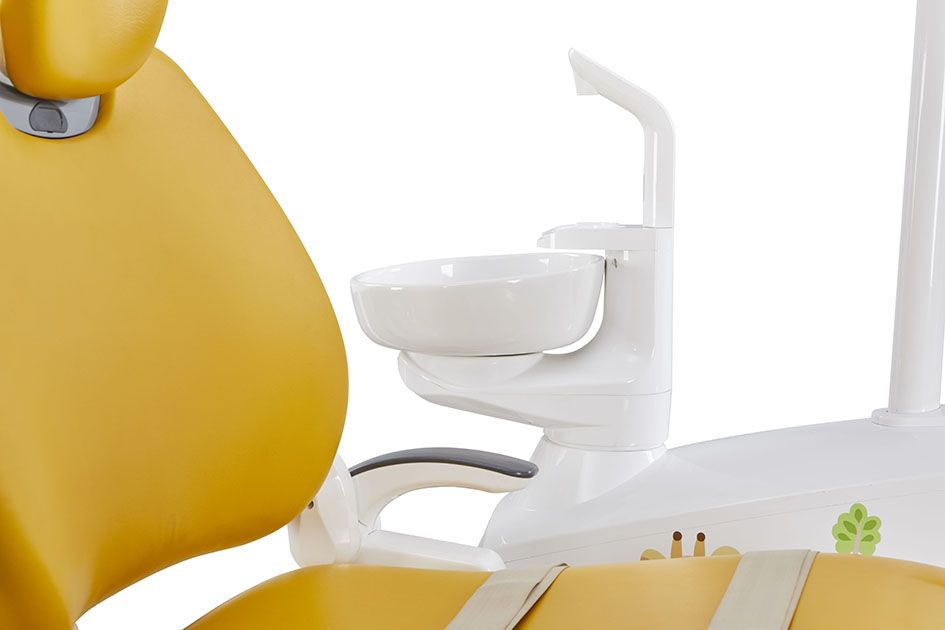

Detachable and Movable Spittoon:



-90 degree rotary glass ( ceramic opitonal ) spittoon

-Easy for cleaning

-deepenning the design to avoid splashing

kids unit factory





kids unit factory

Narrow type back of a chair:



-Backrest filled with slow rebound memory sponge, thickness Moderate, lying on your back with the comfort of being wrapped, Give patients a relaxed and safe experience.

-The leather cushion on the back is tightly woven with natural protein It's woven. It's a whole leather pad.

-Special Comfortable hand feel, can effectively reduce the patient's back Friction with the seat.

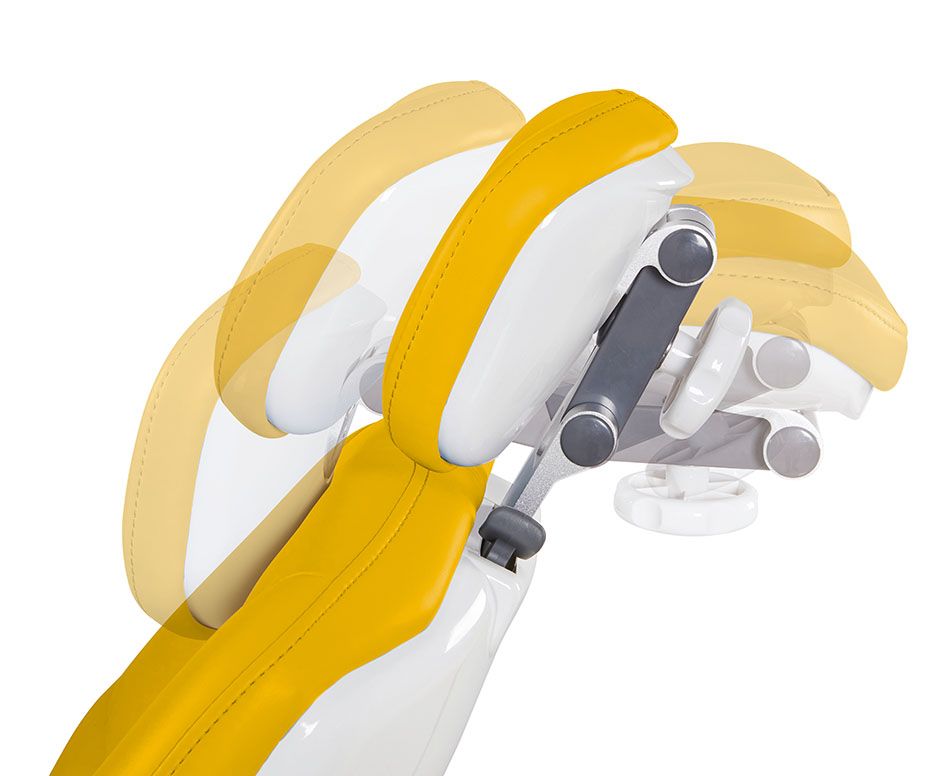

Adjustable Comfort Headrest:



-The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.

kids unit factory

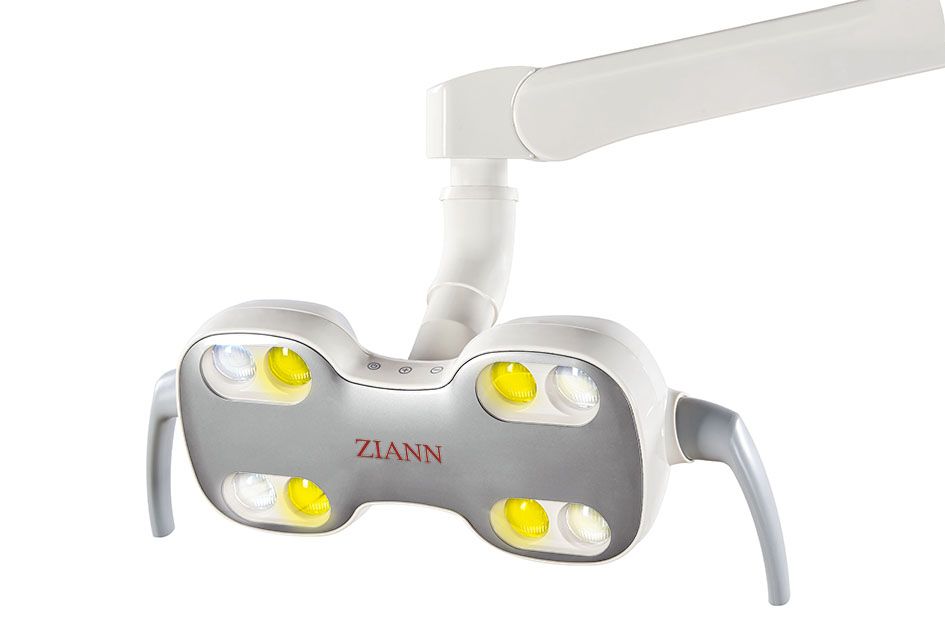

LED Operating Light



-Philips LED light source, adjustable from <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming. It’s with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.

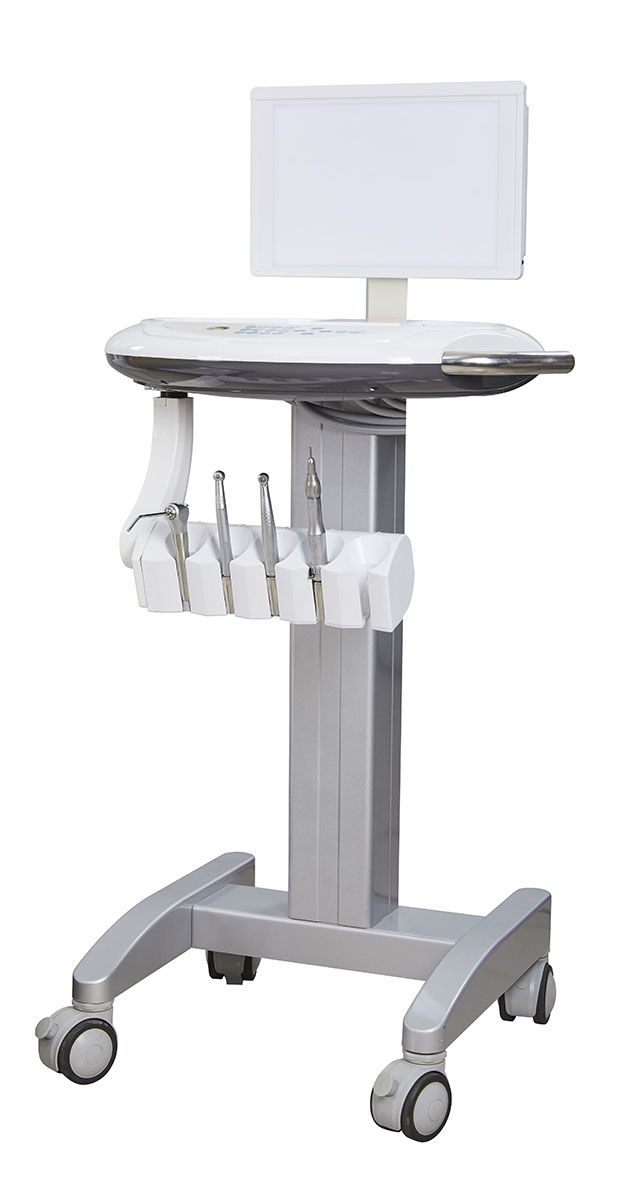

Portable trolley instrument tray



-It is flexible to move, the handpiece rack can be rotated. The trolly handle is made of stainless steel, it’s convenient for cleaning and disinfection.

kids unit manufactrue





kids unit

Four hands operation assistant tray:



-With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.





Cast aluminum light arm:



-Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).

kids unit





kids unit factory

Aluminum Cabinet:



-High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.





Rotatable Armrest



-The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.

kids unit factory





kids unit factory

Junction Box



-Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
-With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.





Multifunctional Foot Pedal:



-The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.

kids unit factory





ORAL kids unit manufactrue

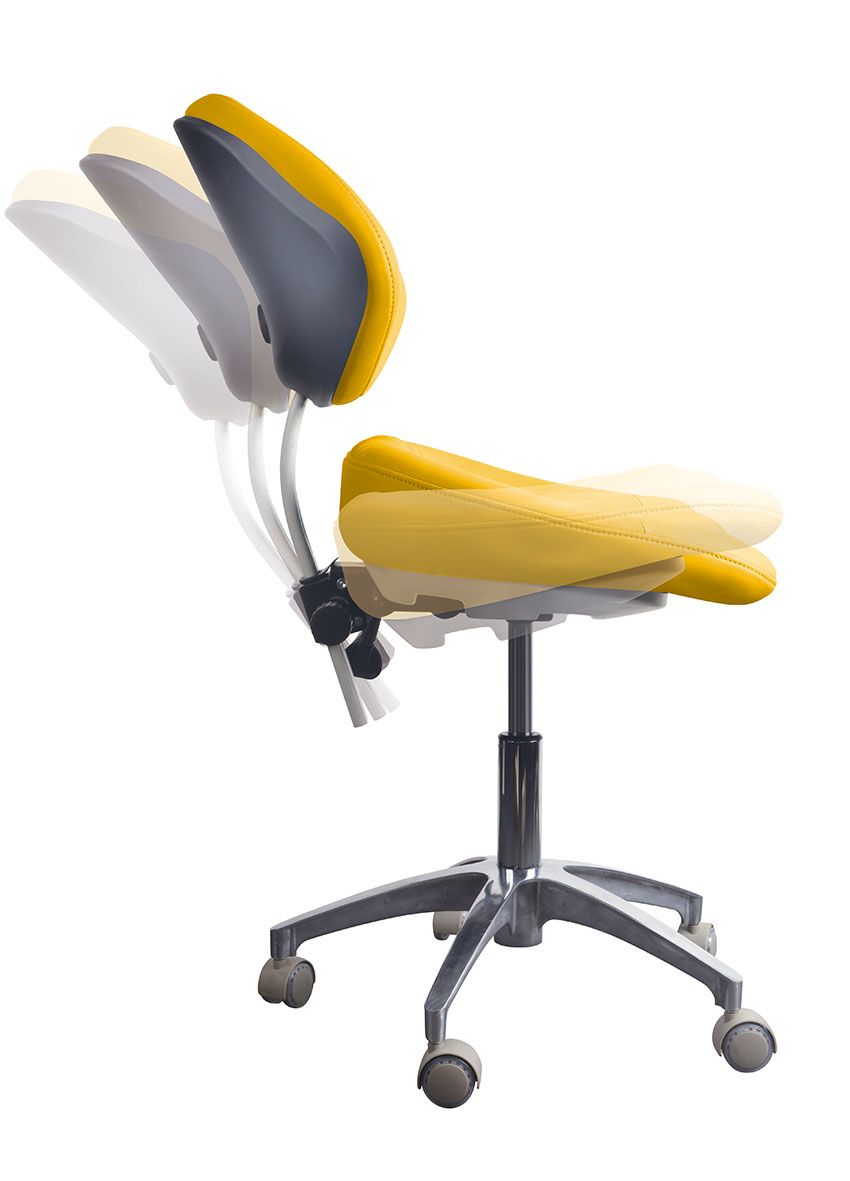

Dentist Stool E



-Dental stool E with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.

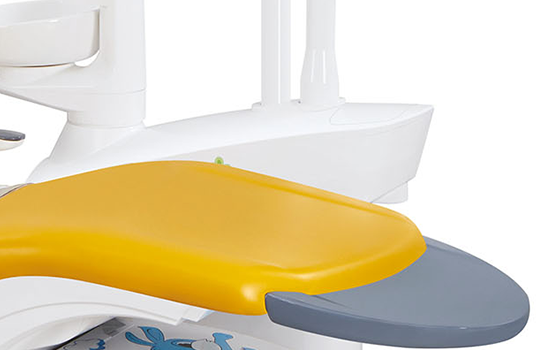

Foot Pad



-The Foot pad design that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.

ORAL kids unit manufactrue

Technical Parameters:



Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa


LED LIGHT



Rated input voltage

AC 24V±10%

Maximum power

25VA

Light Source

 4 white light-emitting diodes (LED)

Color Temperature

5,000K - 5,700K

Illuminance

Adjustable from <8,000 to >30,000



1

24V dc motor chair

2

Portable trolley instrument tray with stainless steel  pallet

3

3-way syinge(tray) hot water

4

3-way syingl(asistant) cold water

5

Main contol system

6

Assistant operating control system

7

Water heater system

8

Strong suction tube

9

Weak sucion tube

10

Movable LED film viwer

11

Water purfication system

12

Air brake instument tray

13

emergency stop switch

14

Protective mat of instument tray

15

Auto spittoon flush and cup filter control system

16

Detachable movable glass spittoon

17

Chair with iself lock function

18

Multi-funcitonal foot controller

19

Keypress function for spliting

20

junction box with main switch( water ,power, air)

21

LED operating light

22

Operation status display on the main tray

23

9 memoris

24

Luxury dentist stool E

25

Glass plate

26

Movable cabinet :

29

The 4TH generation chair frame with improved compensation function

31

Cast aluminum cabinet frame

32

Water one-way valve ( anti-backflow function)
