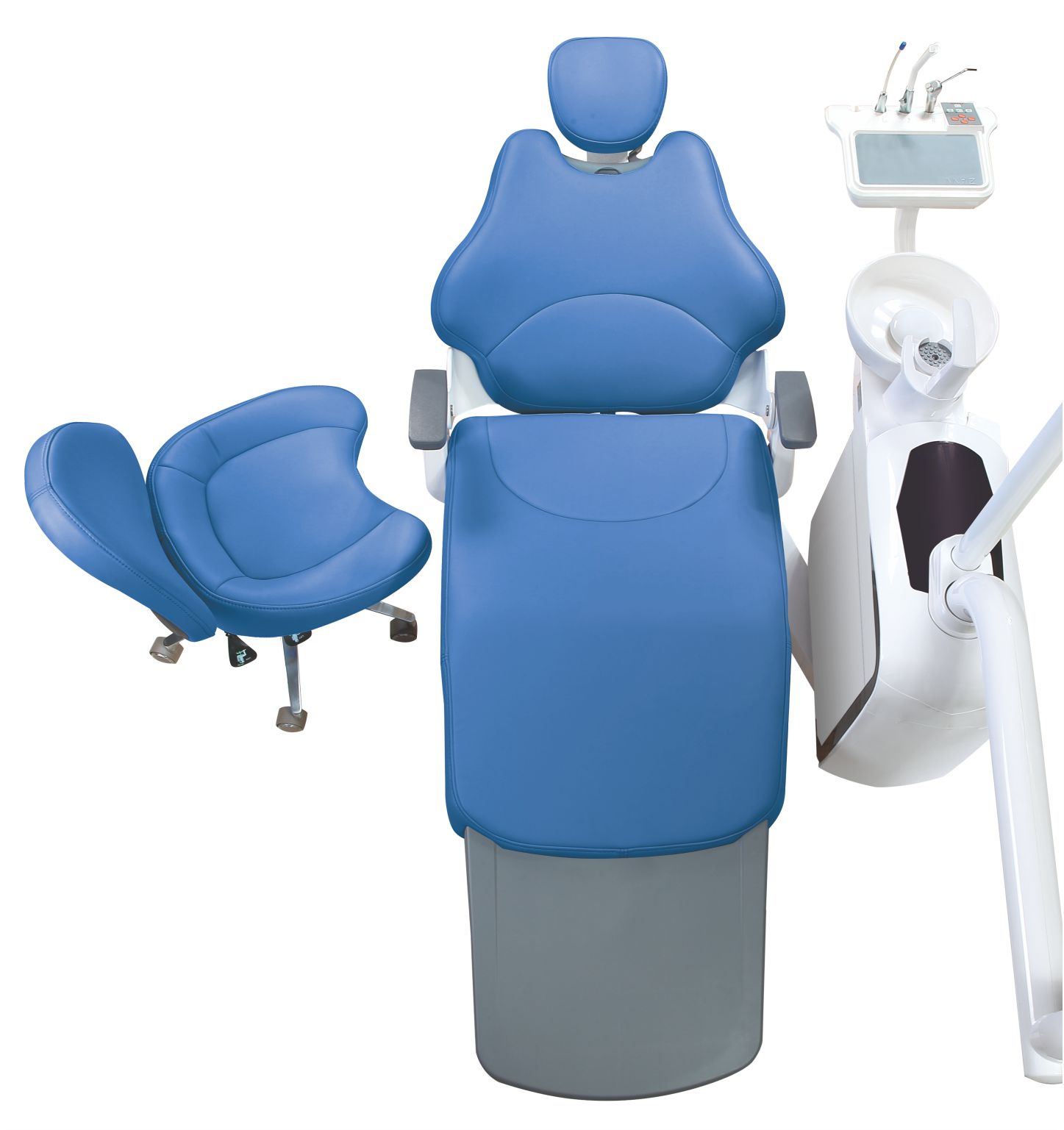

DENTAL UNIT ZA-208Q2

Contact Us
Quick Inquiry

-Blue atmosphere light box design ,luxurious feeling

Share:


Third generation compensation chair design



-German KUKA machine manual automatic assembly (accuracy up to +0.08mm)

-The highest > 720mm, and the <450mm.

-It only takes 9 seconds for the backrest to reach the working position

-Ziann  3rd genaration integral chair frame with greatly improved  compensation function  , Beneficial to human blood circulation

-ziann dental chair  is equipped with comfortable neck and waist pillow, which is combined with strong support for the patient's curve position, so that the spine is more comfortable.

-The design of the compensation chair makes the patient's whole body blood circulation flow more smoothly, lying down for a long time is not tired, relaxed and comfortable.



Implant Unit Manufacture in ChinaImplant Unit Manufacture in ChinaImplant Unit Manufacture in China



NAPA  enviroment leather cushionNAPA  enviroment leather cushion



-Thickness 1.2mm

-Good rebound resilience

-Wear-resistant,breathable an aging resistant

-Ergonomics design




Movable side box:



-45 degreee movable side box , Adopt injection molding process, The opposite door is designed for easy maintenance

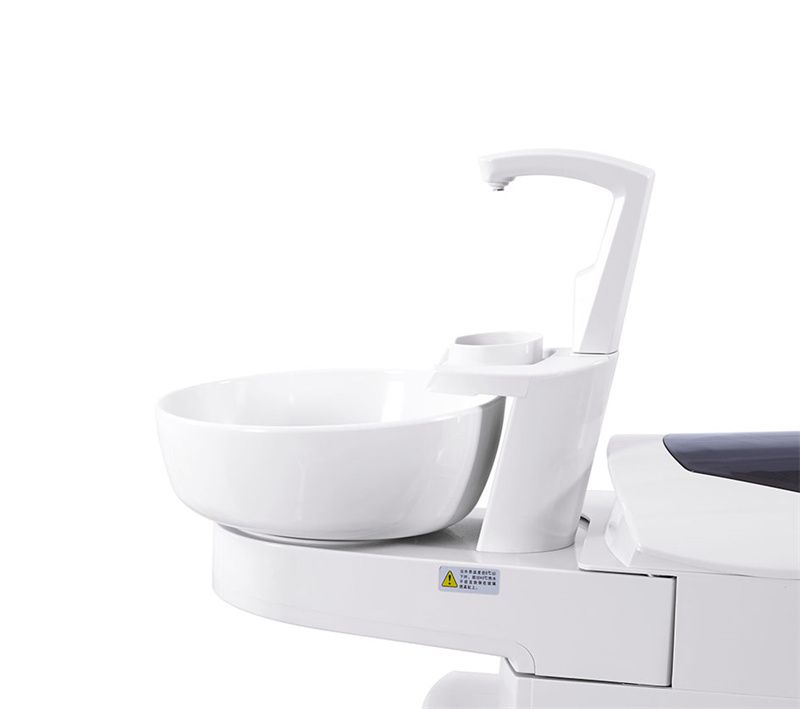

Detachable and Movable Spittoon:



-90 degree rotary glass ( ceramic opitonal ) spittoon

-Easy for cleaning

-deepenning the design to avoid splashing

Implant Unit Manufacture in China





Implant Unit Manufacture in China

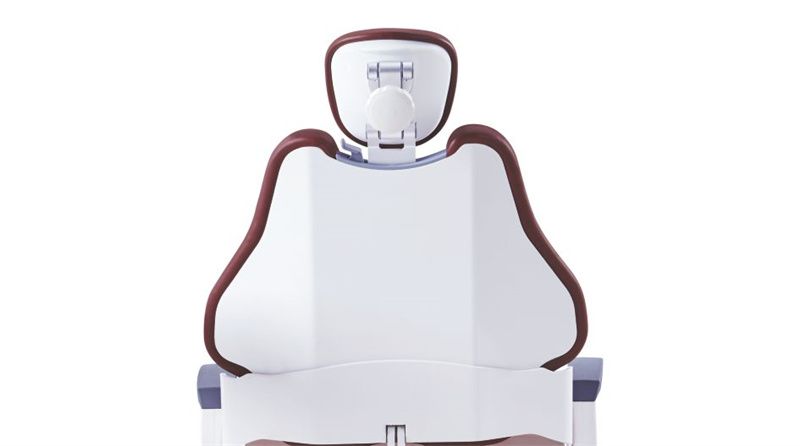

Narrow type back of a chair:



-Backrest filled with slow rebound memory sponge, thickness Moderate, lying on your back with the comfort of being wrapped, Give patients a relaxed and safe experience.

-The leather cushion on the back is tightly woven with natural protein It's woven. It's a whole leather pad.

-Special Comfortable hand feel, can effectively reduce the patient's back Friction with the seat.





Adjustable Comfort Headrest:



-The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.

implant unit manufactrue in the world





implant unit manufactrue in the world

Metal backrest:



-The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.

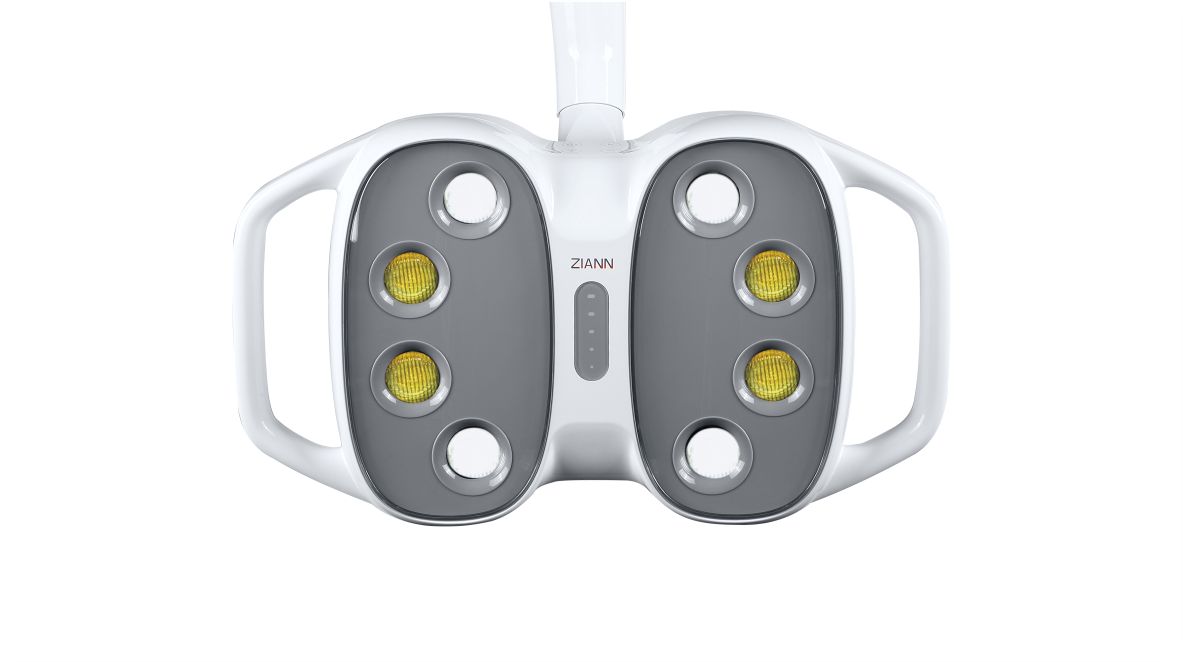

LED Operating Light:



-Philips LED light source, adjustable from <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming. It’s with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.






implant unit manufactrue in the world

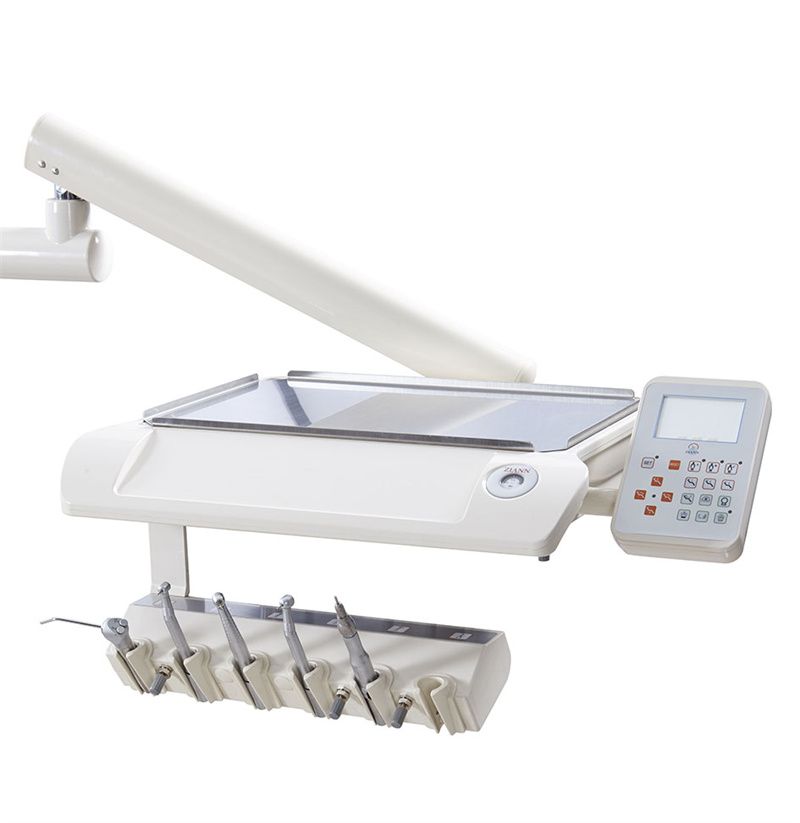

Instrument Tray:



-Nine memories

-Stainless steel tray

-18-key operation panel with x-film viewer inside

-6-rack of instrument holders ,90 degree rotated

-The bottom shell of the instrument tray is made of cast aluminum

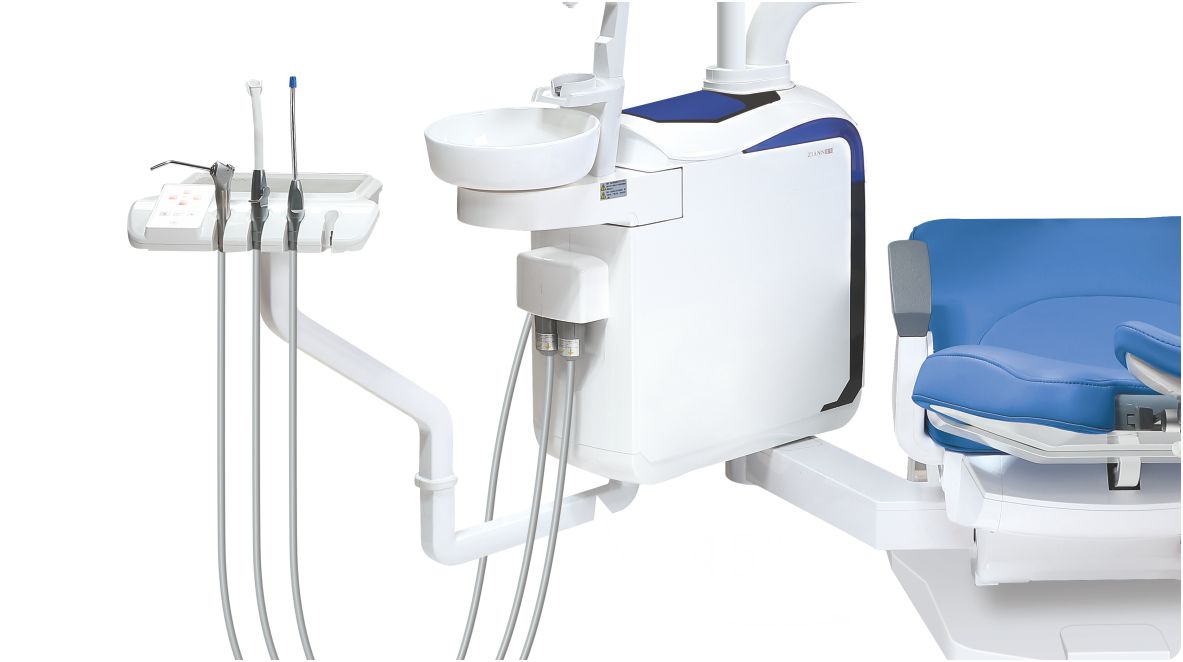

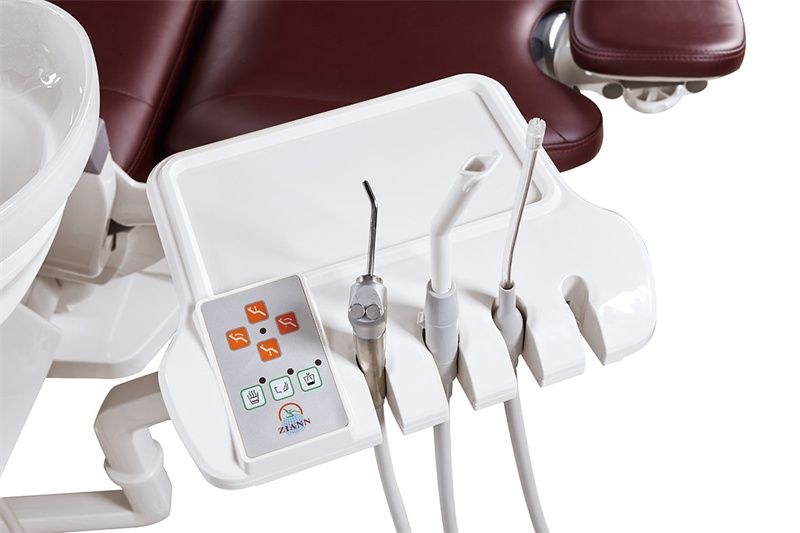

Four hands operation assistant tray:



-With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.

implant unit manufactrue in the world





implant unit manufactrue in the world

Cast aluminum lamp holder:



-Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).





Aluminum Cabinet:



-High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.

implant unit supplier





implant unit supplier

Rotatable Armrest:



-The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.





3rd genartion integral Chair Frame:



-The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.

implant unit supplier





implant unit supplier

Junction Box



-Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
-With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.





Multifunctional Foot Pedal:



-The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.

implant unit supplier





ORAL implant unit factory

New luxry Dentist Stool E



-Dental stool E with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.





Foot Pad



-The Foot pad design that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.

ORAL implant unit factory







Technical Parameters:



Power Voltage

220V-50HZ/60HZ



Motor Voltage

24V



Air Pressure

0.5MPa-0.8MPa



Water Pressure

0.2MPa-0.4MPa





LED LIGHT



Rated input voltage

AC 24V±10%

Maximum power

25VA

Light Source

 4 white light-emitting diodes (LED)

Color Temperature

5,000K - 5,700K

Illuminance

Adjustable from <8,000 to >30,000



1

24V dc motor chair

2

Down mounted instrument tray with Stainless steel pallet

3

3-way syinge(tray) hot water

4

3-way syingl(asistant) cold water

5

Main contol system with 9 memories

6

Assistant operating control system

7

Water heater system

8

Strong suction tube

9

Weak suction tube

10

Movable LED film viwer

11

Water purification system

12

Air brake instument tray

13

emergency stop switch

15

Auto spittoon flush and cup filter control system

16

Detachable movable ceramic spittoon

17

Chair with itself lock function

18

Multi-funcitonal foot controller

19

Keypress function for spliting

20

junction box with main switch( water ,power, air)

21

LED operating light

24

Luxury dentist stool E

25

Glass plate

26

Movable cabinet :

29

The 3rd generation chair frame with improved compensation function

30

Luxury miro-fiber environment leather

31

Cast aluminum cabinet frame

32

Water one-way valve ( anti-backflow function)
